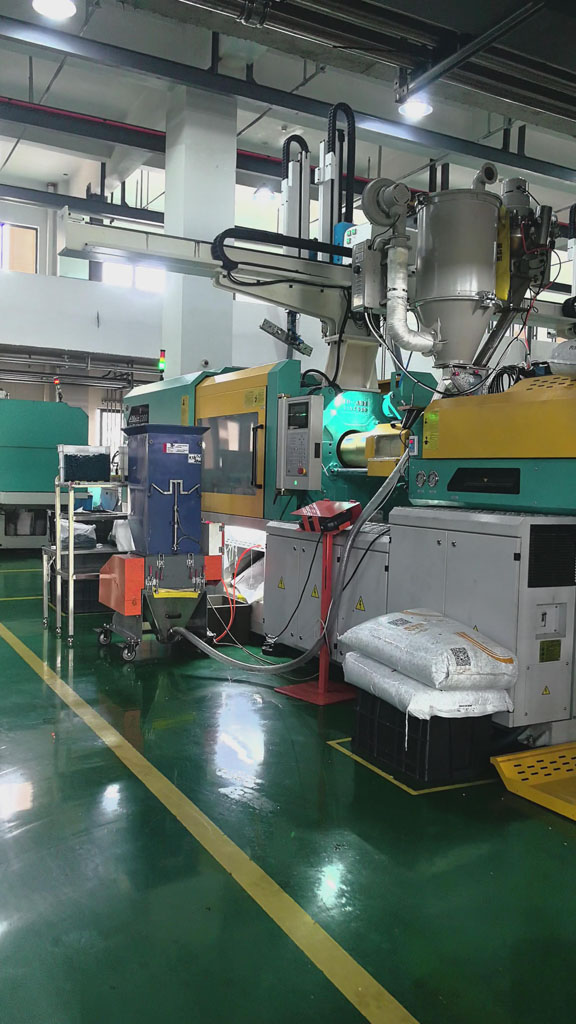

How Does an Automated Pen Production Line Work?

Plastic pens are among the most widely manufactured stationery products in the world. Every day, millions of pen barrels, caps, and other plastic components are produced using high-speed injection molding technology.

Modern pen production is no longer a labor-intensive process. Instead, manufacturers rely on automated production lines that combine injection molding machines, material handling systems, and robotic automation to achieve high productivity and consistent product quality.

1. Automatic Material Feeding

The production process begins with plastic pellets being transported by an automatic loader.

The material is continuously delivered from the storage hopper to the drying system, ensuring uninterrupted production while reducing manual labor.

2. Material Drying

Before injection molding, plastic materials are dried to remove moisture.

Proper drying helps prevent common molding defects such as bubbles, silver streaks, and dimensional instability, ensuring high-quality pen components.

3. Injection Molding

After drying, the plastic material enters the injection molding machine.

The material is heated, melted, and injected into a precision mold where pen barrels or pen caps are formed.

High-speed injection molding machines are commonly used in stationery manufacturing because they provide:

• Short cycle times
• Stable production
• High repeatability
• Excellent product consistency

4. Automatic Robot Handling

Once the molding cycle is completed, a robot automatically removes the molded products from the machine.

Compared with manual operation, robotic handling offers several advantages:

• Faster production
• Improved workplace safety
• Reduced labor costs
• Better product consistency

The products are then transferred to collection bins or conveyors for the next manufacturing process.

5. Continuous Production

All production equipment works together as one automated system.

Material feeding, drying, injection molding, and robotic handling operate continuously to maximize productivity while maintaining stable product quality.

This integrated production method is widely used for manufacturing:

• Marker pens
• Gel pens
• Ballpoint pens
• Highlighters
• Other plastic stationery products

Why Automation Matters

As labor costs continue to rise worldwide, automation has become increasingly important in the stationery industry.

A modern automated pen production line helps manufacturers:

• Increase production capacity
• Improve product consistency
• Reduce operating costs
• Minimize downtime
• Enhance overall manufacturing efficiency

About AIMATE

AIMATE, a brand of Ningbo Ruizhan Intelligent Equipment Co., Ltd., specializes in high-performance injection molding solutions for the stationery industry.

Our machines are widely used in the production of pen barrels, pen caps, marker pens, gel pens, and other plastic writing instruments.

We provide complete solutions including high-speed injection molding machines, customized machine configurations, and technical support tailored to customers' production requirements.

Whether you are planning a new stationery production line or upgrading your existing factory, AIMATE is committed to helping you achieve efficient, reliable, and cost-effective manufacturing.

For more information, machine videos, and project consultation, please contact our team.
